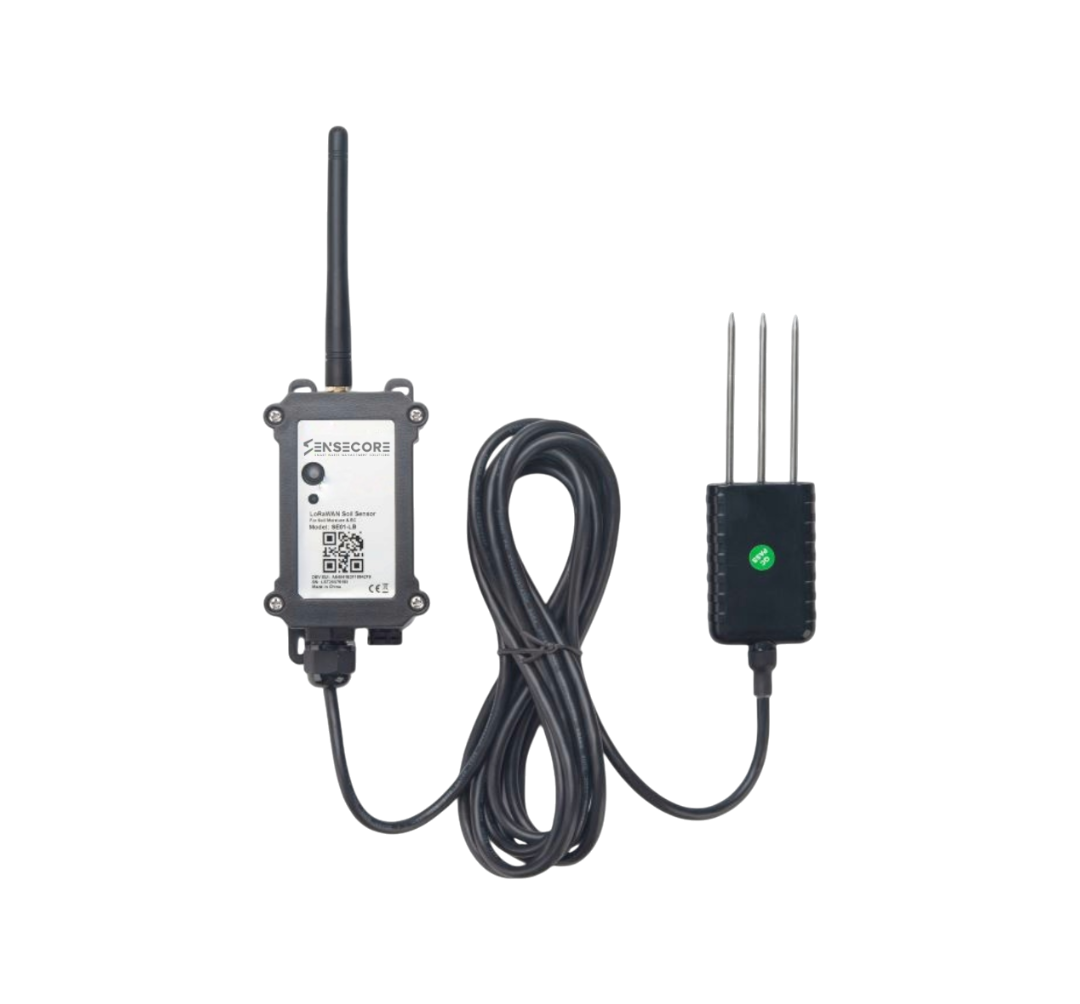

What is the SenseCore AquaRoot Soil Moisture Sensor?
The SenseCore AquaRoot Soil Moisture Sensor is a LoRaWAN-enabled device designed for precision agriculture. It measures soil moisture, temperature, and conductivity, using FDR (Frequency Domain Reflectometry) methods to provide accurate data. The sensor is factory-calibrated for mineral soil types and can detect moisture in saline-alkali and loamy soils. Data is transmitted wirelessly to an IoT server via LoRaWAN, offering ultra-long-range communication and high interference immunity while minimizing power consumption.
The AquaRoot supports BLE configuration and wireless OTA updates, ensuring ease of use. It is powered by an 8500mAh Li-SOCI2 battery or a solar-powered Li-ion battery, designed for long-term use of up to 5 years. Each sensor comes pre-loaded with unique keys for easy LoRaWAN registration and automatic connection after power on.
1.2 Features
- LoRaWAN 1.0.3 Class A
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Monitoring Capabilities:
- Soil Moisture
- Soil Temperature
- Soil Conductivity
- Support for Bluetooth v5.1 and LoRaWAN remote configuration
- Wireless OTA firmware updates
- AT Commands for parameter changes
- Periodic uplinks and downlinks for configuration changes
- IP66 Waterproof Enclosure
- Battery Options:
- 8500mAh Li-SOCI2 Battery (AquaRoot-LB)
- Solar panel + 3000mAh Li-ion battery (AquaRoot-LS)
1.3 Specifications
Common DC Characteristics:
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
Soil Moisture:
- Range: 0-100.00 V/V %
- Resolution: 0.01 V/V %
- Accuracy: ±3% (0-53%) V/V %, ±5% (>53%) V/V %
- Measurement Method: FDR, with temperature & EC compensation
Soil Temperature:
- Range: -40.00℃～85.00℃
- Resolution: 0.01℃
- Accuracy: -10℃～50℃: <0.3℃, All other: <0.6℃
- Measurement Method: RTD, and calibrated
Soil Conductivity:
- Range: 0-20000 uS/cm (25℃) (0-20.0 EC)
- Resolution: 1 uS/cm
- Accuracy: 2% FS
- Measurement Method: Conductivity, with temperature compensation
LoRa Specifications:
- Frequency Range: Band 1 (HF): 862 ~ 1020 MHz
- Max RF Output: +22 dBm constant
- RX Sensitivity: down to -139 dBm
- Blocking Immunity: Excellent
Battery:
- Type: Li/SOCI2 unchargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max Continuous Current: 130mA
- Max Boost Current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
