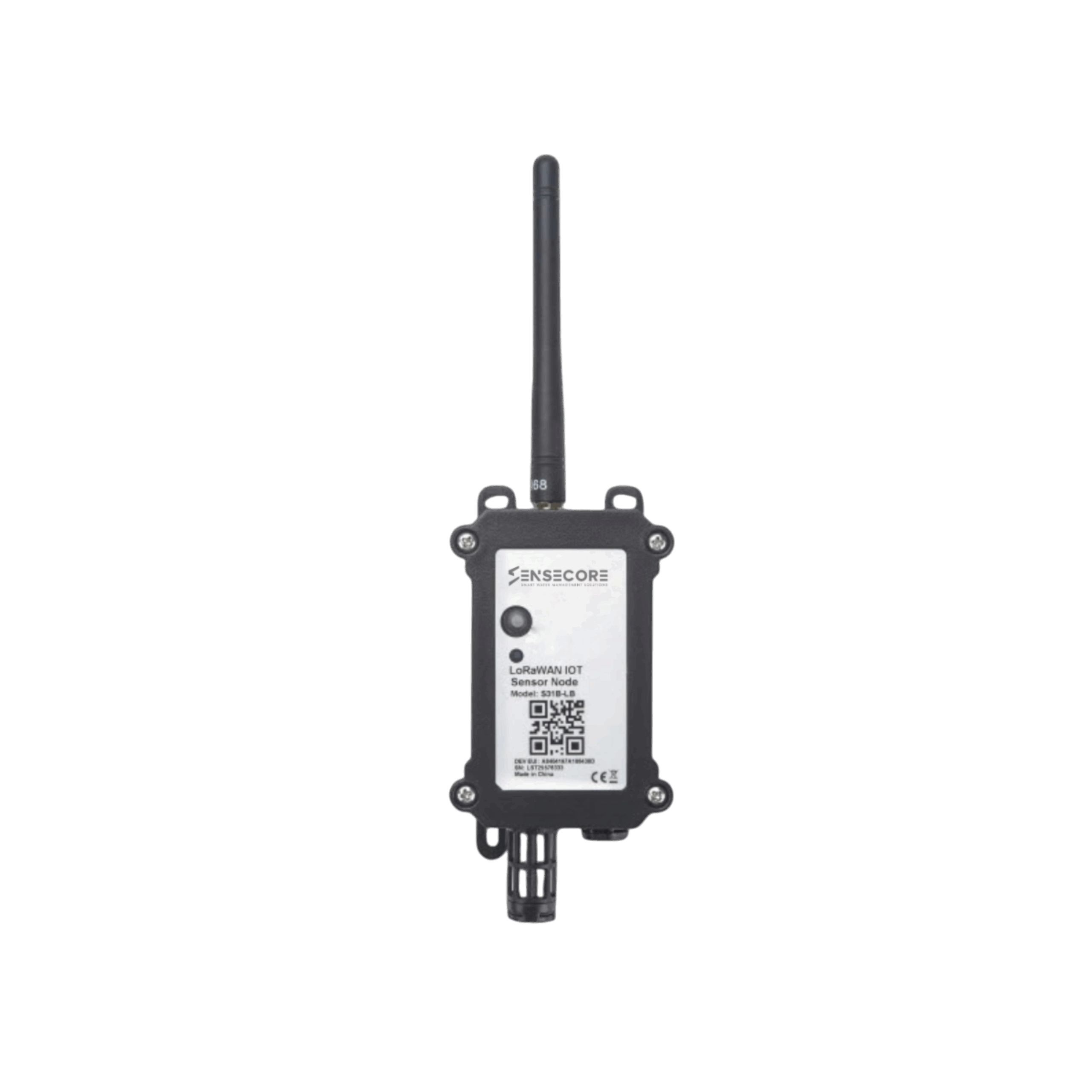

SenseCore Temp & Humidity Sensor
The SenseCore Temp & Humidity Sensor, based on the Dragino S31x-LB/LS model, is a LoRaWAN solution designed to measure the surrounding environment’s temperature and relative air humidity precisely, and then upload this data to an IoT server via the LoRaWAN wireless protocol.
Key Features
- Accurate Measurement: Utilizes the SHT31 sensor from Sensirion, known for its high reliability and long-term stability. The sensor is housed in a waterproof, anti-condensation casing.
- LoRaWAN Technology: Ensures ultra-long range communication with high interference immunity while minimizing power consumption.
- Temperature & Humidity Alarm: Allows users to set alarms for instant notifications based on temperature changes.
- Datalog Feature: Stores data locally when the LoRaWAN network is unavailable, and uploads it once the network is restored.
- Easy Configuration: Supports BLE configuration and wireless OTA updates.
- Long-Term Use: Powered by an 8500mAh Li-SOCI2 battery or a solar panel with a 3000mAh Li-on battery, designed for up to 5 years of use.
- Pre-loaded Unique Keys: Each device comes with unique keys for seamless LoRaWAN registration and automatic connection upon powering on.
Features
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- External 3-meter SHT31 probe (for S31-LB)
- Measurement range: -40°C to 80°C
- Temperature & Humidity alarm
- Supported Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Support for Bluetooth v5.1 and LoRaWAN remote configuration
- Support for wireless OTA firmware updates
- Periodic uplink and configurable downlink
- Power Options: 8500mAh Li-SOCI2 battery (S31/S31B-LB) or solar panel + 3000mAh Li-on battery (S31/S31B-LS)**
Specifications
Common DC Characteristics:
- Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
Temperature Sensor:
- Range: -40 to +80°C
- Accuracy: ±0.2 @ 0-90 °C
- Resolution: 0.1°C
- Long Term Shift: <0.03 °C/yr
Humidity Sensor:
- Range: 0 ~ 99.9% RH
- Accuracy: ±2%RH (0 ~ 100%RH)
- Resolution: 0.01% RH
- Long Term Shift: <0.25 %RH/yr
LoRa Spec:
- Frequency Range: 862 ~ 1020 MHz
- Max RF Output: +22 dBm constant
- RX Sensitivity: Down to -139 dBm
- Blocking Immunity: Excellent
Battery:
- Type: Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max Continuous Current: 130mA
- Max Boost Current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Applications
- Smart Buildings & Home Automation
- Smart Cities
- Smart Factory
