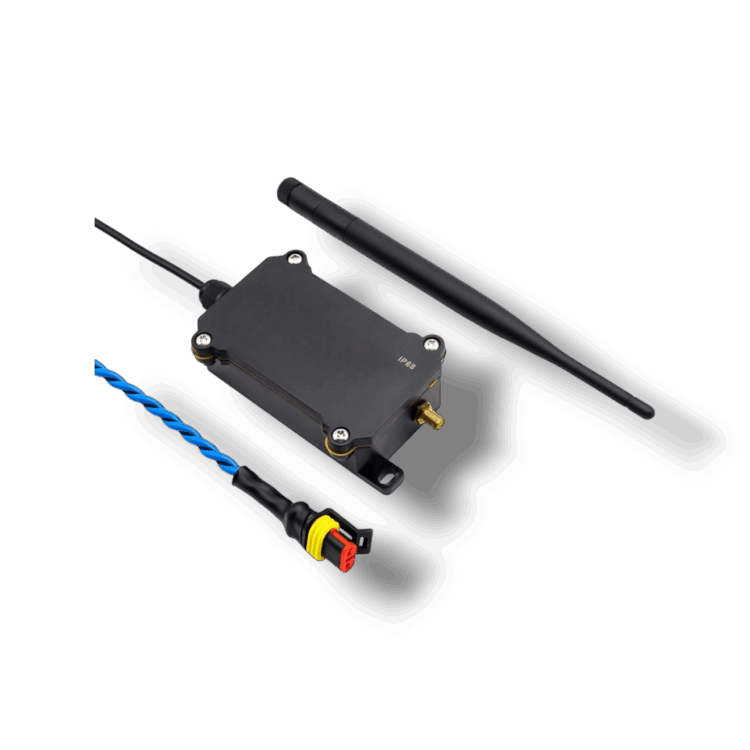

SenseCore AquaLine Flow Sensor LoRaWAN

The SenseCore AquaLine LoRaWAN Flow Sensor is a high-precision flow sensor designed to measure and monitor water flow volume in real-time. It transmits data via LoRaWAN technology, ensuring reliable monitoring for both indoor and outdoor applications. Featuring BLE configuration, OTA updates, and a long-lasting battery, this flow sensor is ideal for optimizing water usage and detecting waste. Pair it with SenseCore’s Control Suite Platform for optimal performance.

Guaranteed Safe Checkout

The SenseCore AquaLine Flow Sensor



The SenseCore AquaLine LoRaWAN Flow Sensor is a state-of-the-art device designed to measure and monitor water flow volume accurately in real-time. It utilizes LoRaWAN technology to transmit data to IoT servers, making it an excellent choice for various applications, including monitoring water usage in buildings and detecting potential waste.

SenseCore AquaLine LoRaWAN Flow Sensor ensures precise flow measurement and provides valuable data for optimizing processes and resource management. It supports BLE configuration and wireless OTA updates, offering ease of use and maintenance.

Designed for both indoor and outdoor use, the SenseCore AquaLine LoRaWAN Flow Sensor features a weatherproof enclosure and industrial-level battery, ensuring reliable performance in varying temperatures. It is available with an 8500mAh Li-SOCI2 battery or a solar-powered + Li-on battery, designed for long-term use up to 5 years.

Each SenseCore AquaLine LoRaWAN Flow Sensor is pre-loaded with a set of unique keys for LoRaWAN registrations. Register these keys to a local LoRaWAN server, and it will auto-connect after power on.

Pairing the flow sensor with SenseCore’s Control Suite Platform will provide the best results, offering advanced data analysis and seamless integration into your IoT ecosystem.

Features

  • LoRaWAN 1.0.3 Class A
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Ultra-low power consumption
  • Upload water flow volume every 20 minutes
  • Monitor water waste and send alarms
  • AT Commands to change parameters
  • Supports Datalog feature
  • Support Bluetooth v5.1 and LoRaWAN remote configuration
  • Support wireless OTA firmware update
  • Uplink periodically and on open/close events
  • Downlink to change configuration
  • 8500mAh Li/SOCl2 Battery (SW3L-LB)
  • Solar panel + 3000mAh Li-on battery (SW3L-LS)

Specification

Common DC Characteristics:

  • Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

LoRa Spec:

  • Frequency Range: 862 ~ 1020 MHz
  • Max +22 dBm constant RF output
  • RX sensitivity: down to -139 dBm
  • Excellent blocking immunity

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuous current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption:

  • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Applications:

  • Flow Sensor applications
  • Water Control
  • Toilet Flow Sensor
  • Monitor Wastewater

Supported Flow Sensor Models:

  •  Flow Sensor: diameter G1/2” / DN15,  450 pulses = 1 L
  •  Flow Sensor: diameter G3/4” / DN20,  390 pulses = 1 L
  •  Flow Sensor: diameter G 1” / DN25,  64 pulses = 1 L
  •  Flow Sensor: diameter G 2” / DN50,  12 pulses = 1 L
Weight1 kg
Dimensions10.5 × 11 × 11 cm
