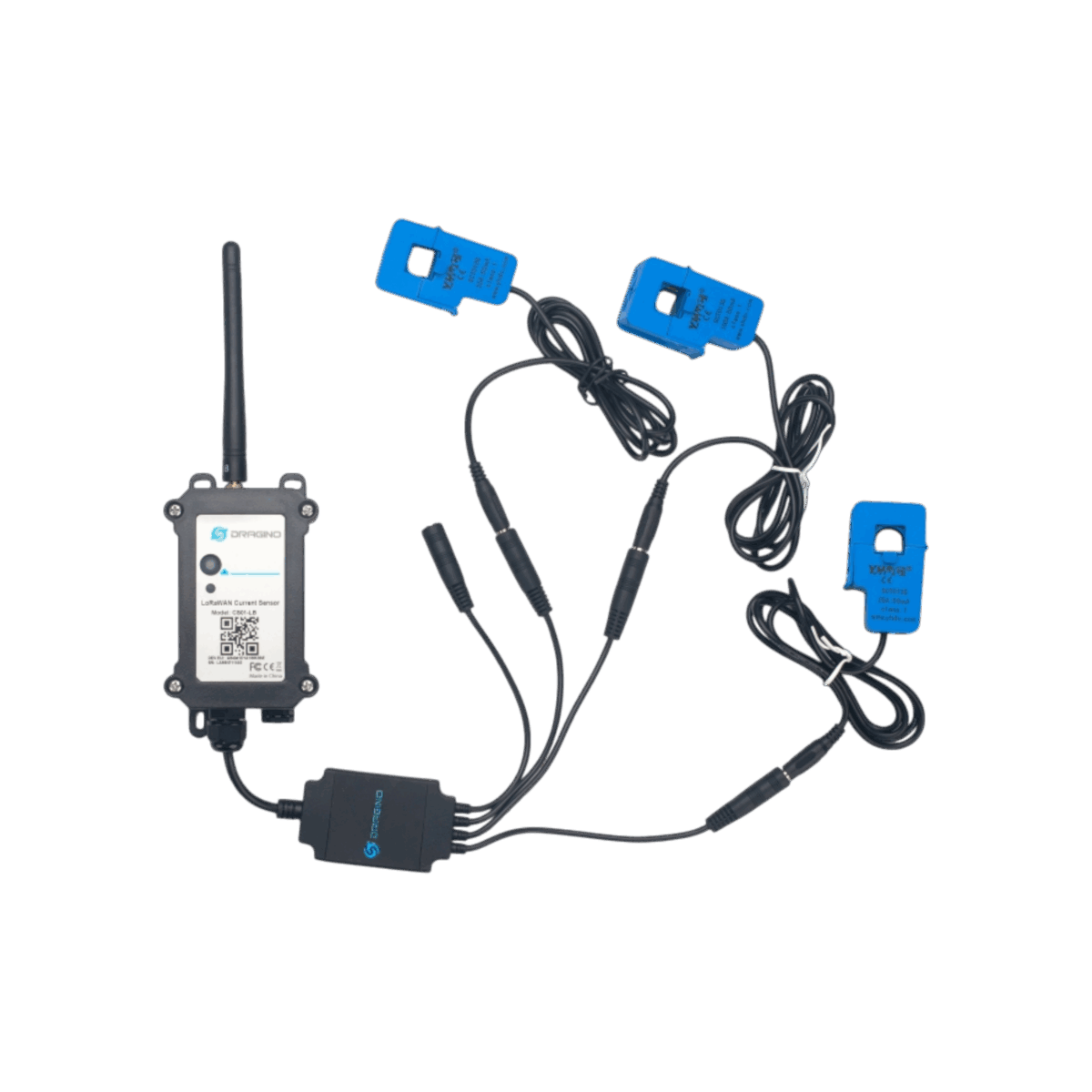

SenseCore QuadClamp 4-Channel Current Sensor LoRaWAN

The SenseCore QuadClamp 4-Channel Current Sensor is a LoRaWAN converter that monitors machine status and analyzes power consumption. It supports up to 4 detachable sensors, BLE configuration, and wireless OTA updates. Powered by an 8500mAh Li-SOCI2 battery, it offers long-term use and is compatible with all LoRaWAN frequencies. Pair it with SenseCore’s Control Suite Platform for optimal results.

Guaranteed Safe Checkout

The SenseCore QuadClamp 4-Channel Current Sensor



  • The SenseCore QuadClamp 4-Channel Current Sensor is a LoRaWAN 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to IoT server via LoRaWAN Network.
  • SenseCore QuadClamp 4-Channel Current Sensor can be used to monitor the machine running status and analyze power consumption trends.
  • The SenseCore QuadClamp 4-Channel Current Sensor supports a maximum of 4 current sensors. The current sensors are detachable and can be replaced with different scales.
  • SenseCore QuadClamp 4-Channel Current Sensor supports BLE configuration and wireless OTA update, which make it easy to use.
  • SenseCore QuadClamp 4-Channel Current Sensor is powered by an 8500mAh Li-SOCI2 battery, designed for long-term use up to several years.
  • Each SenseCore QuadClamp 4-Channel Current Sensor is pre-loaded with a set of unique keys for LoRaWAN registrations. Register these keys to a local LoRaWAN server, and it will auto-connect after power on.
  • SenseCore QuadClamp 4-Channel Current Sensor is available in all LoRaWAN frequencies.
  • Pairing the sensor with SenseCore’s Control Suite Platform will provide the best results.

Features

  • LoRaWAN 1.0.3 Class A
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Ultra-low power consumption
  • Supports a maximum of 4 current sensors
  • Supports various current sensor Ratios: 50A, 100A, etc.
  • Monitors machine running status
  • Analyzes power consumption trends
  • Current Alarm
  • Supports Bluetooth v5.1 and LoRaWAN remote configuration
  • Supports wireless OTA firmware update
  • Uplink periodically
  • Downlink to change configuration
  • 8500mAh Li/SOCl2 Battery
  • Solar Version Available

Specification

Common DC Characteristics:

  • Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

LoRa Spec:

  • Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm
  • Excellent blocking immunity

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuous current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption

  • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Weight1 kg
Dimensions10.5 × 11 × 11 cm
