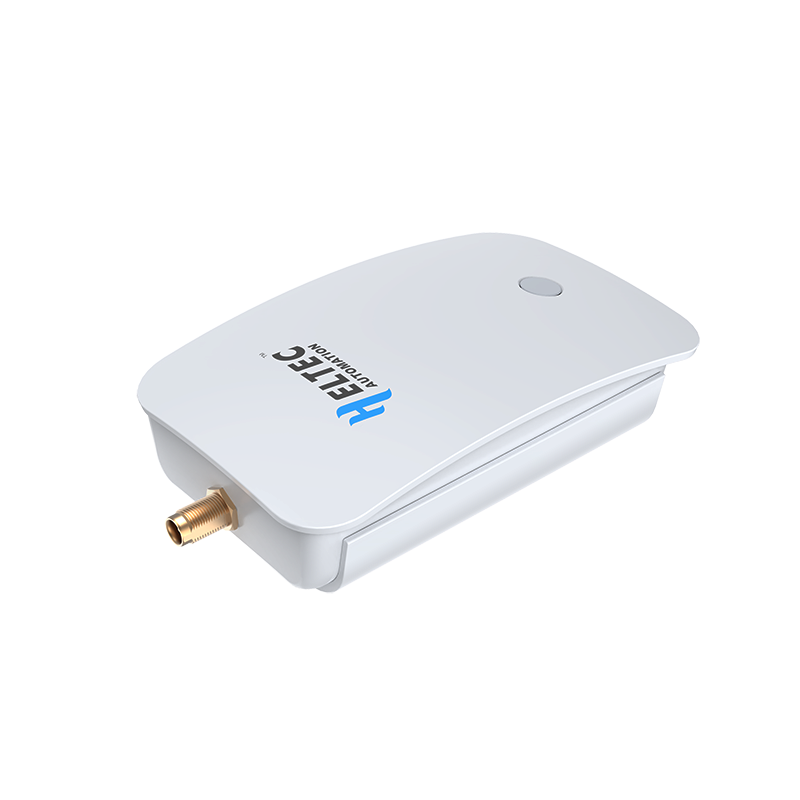

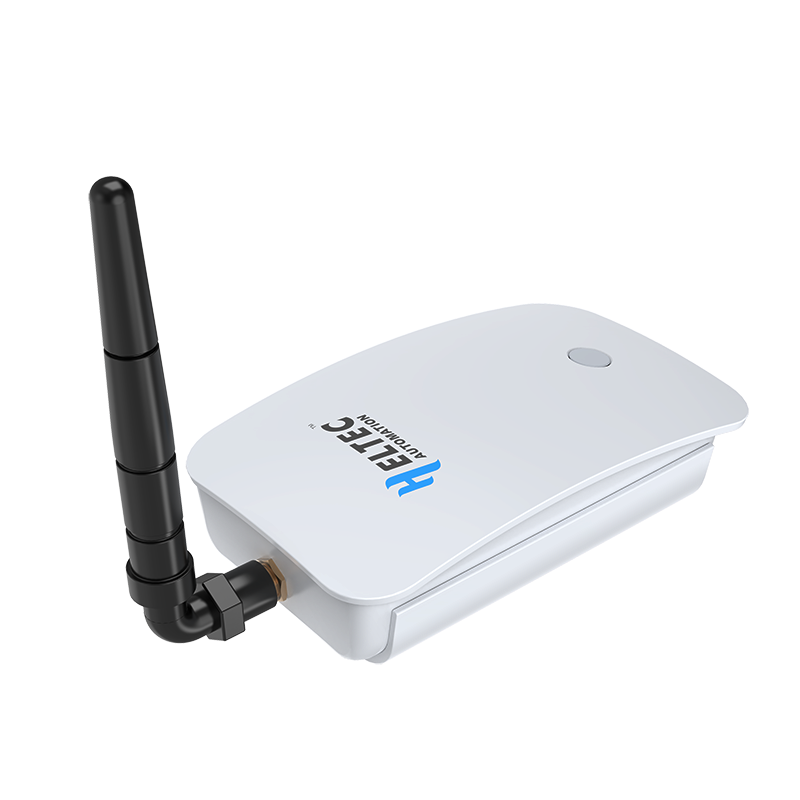

SenseCore HT-M7603 Indoor LoRaWAN Gateway
The SenseCore HT-M7603 is a compact, affordable indoor LoRaWAN gateway designed to bridge LoRa wireless sensor networks with IP-based backhaul. Its wall-mountable, space-efficient form factor and support for both Wi-Fi and Ethernet backhaul make it ideal for indoor IoT, smart building, utility, or sensor-network installations. With support for standard LoRaWAN 1.0.2 (Class A & Class C) — as well as custom MQTT mode — the HT-M7603 offers flexibility for both public LoRa networks and private, self-hosted MQTT-based deployments under the SenseCore platform. wiki.heltec.org+2s.heltec.cn+2
Key Features
-
Industrial-grade MT7628 MCU with SX1303 + SX1250 chipset — robust processing for reliable packet forwarding. wiki.heltec.org+1
-
LoRaWAN 1.0.2 (Class A / Class C) + custom MQTT support — flexible protocol support for standard and custom IoT deployments. wiki.heltec.org+1
-
Dual backhaul: Wi-Fi (802.11 b/g/n 2.4 GHz) or Ethernet (10/100M) — integrates easily into existing network infrastructure. s.heltec.cn+1
-
8 uplink channels + 1 downlink channel (multi-channel gateway) — supports multiple devices concurrently with stable reception. s.heltec.cn+1
-
High RF performance: up to +27 ± 2 dBm transmit power; receiver sensitivity down to –139 dBm ensures strong range and penetration. s.heltec.cn+1
-
Low-voltage 5 V DC supply — easy powering and deployment. wiki.heltec.org+1
-
Compact dimensions (116 × 65 × 30 mm) — wall-mountable or rackable in closets / network rooms. s.heltec.cn+1
-
Simple web-UI configuration — quick setup in minutes (via WiFi or Ethernet). wiki.heltec.org+1
Technical Specifications
| Parameter | Specification |
|---|---|
| MCU / LoRa Chipset | MT7628 MCU + SX1303 + SX1250 s.heltec.cn+1 |
| Channels | 8 uplink / 1 downlink (multi-channel) s.heltec.cn+1 |
| Frequency Bands | 470–510 MHz / 863–870 MHz / 902–923 MHz (region dependent) s.heltec.cn+1 |
| Max TX Power | +27 ± 2 dBm s.heltec.cn+1 |
| RX Sensitivity | up to –139 dBm s.heltec.cn+1 |
| Backhaul Connectivity | Wi-Fi 802.11 b/g/n (2.4 GHz) or Ethernet 10/100 M s.heltec.cn+1 |
| Power Supply | 5 V DC wiki.heltec.org+1 |
| Operating Conditions | –20 °C to 70 °C; 10%–90% RH (non-condensing) s.heltec.cn+1 |
| Physical Size | 116 × 65 × 30 mm s.heltec.cn+1 |
Use Cases & Applications
The HT-M7603 is a versatile gateway suited for a wide range of IoT and sensor-network scenarios, including:
-
Smart building automation and sensor networks (temperature, humidity, occupancy, energy, etc.)
-
Utility and municipal sensor deployments (water, gas, environmental monitoring)
-
Industrial telemetry and equipment monitoring within factories or warehouses
-
Agricultural sensor networks (soil moisture, weather, irrigation control)
-
Private LoRaWAN networks or integration with platforms such as ChirpStack or custom MQTT stacks via the SenseCore Control Suite backend
