Technical Overview & Product Details

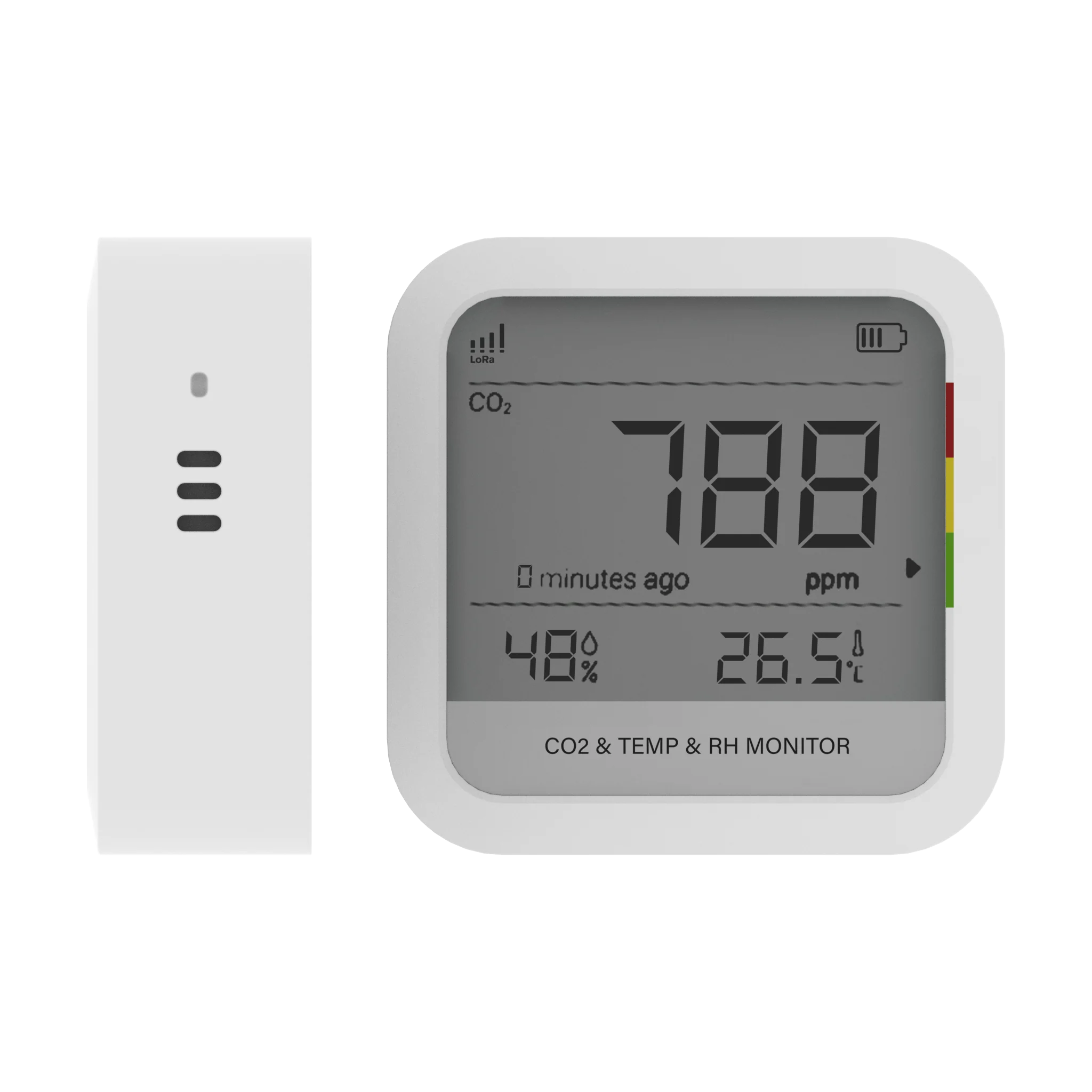

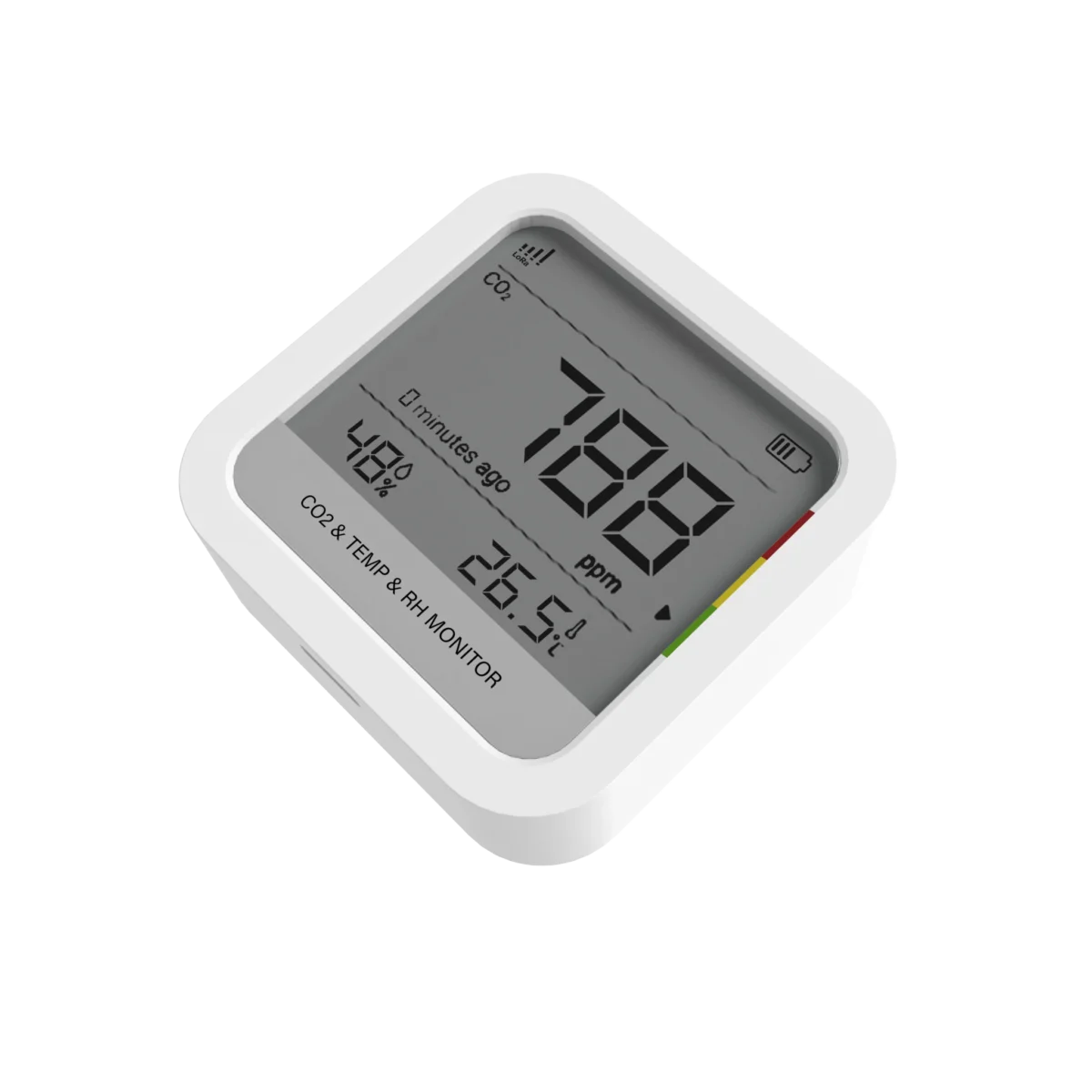

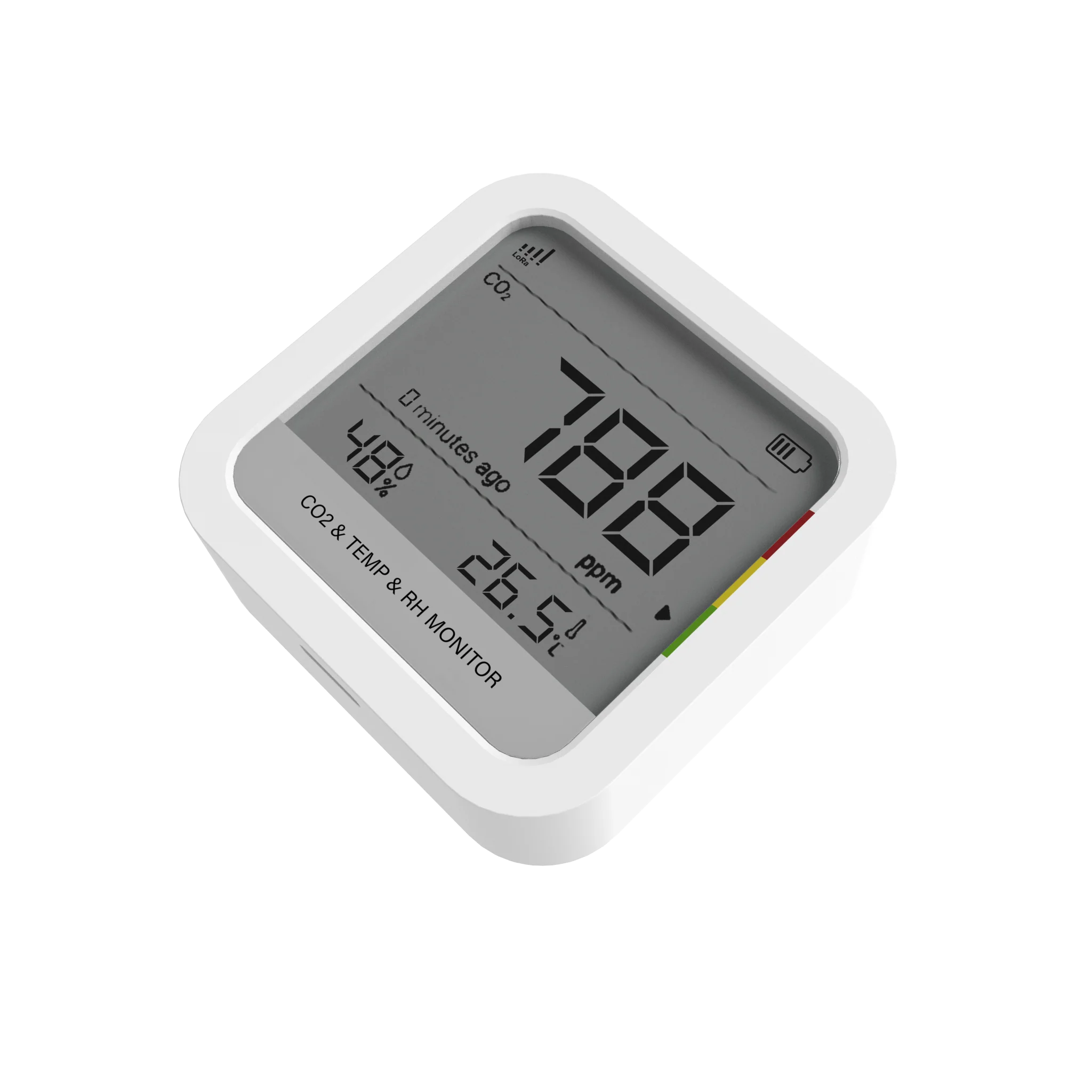

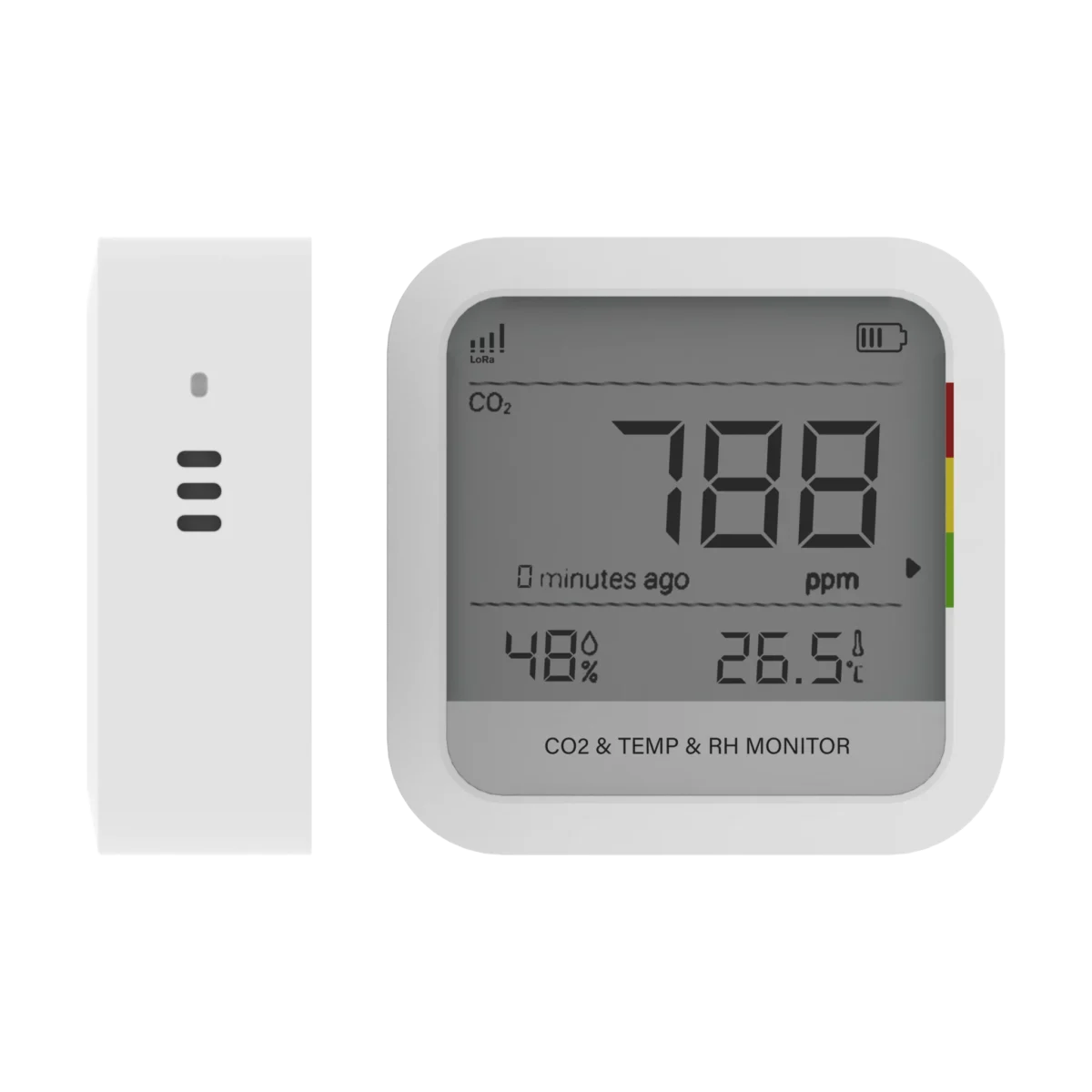

The QingPing LoRaWAN CO₂ Monitoring Sensor is a precise, wireless device designed to monitor indoor air quality in real-time. Using non-dispersive infrared (NDIR) technology, it accurately measures CO₂ concentrations, temperature, and relative humidity. Its LoRaWAN® connectivity ensures long-range, low-power communication, making it ideal for large-scale deployments in offices, schools, healthcare facilities, and commercial buildings. This LoRaWAN CO₂ Monitoring Sensor integrates seamlessly with the SenseCore Control Suite, allowing centralized monitoring, real-time alerts, and actionable insights to maintain healthy indoor environments.
Equipped with a high-resolution display and configurable reporting intervals, the sensor delivers accurate readings from 400–5000 ppm for CO₂, -10°C to 50°C for temperature, and 0–99.9% RH for humidity. Its rechargeable USB-C battery and compact IP20-rated enclosure enable easy installation without wiring hassles. With support for global LoRaWAN® frequency bands and compliance with industrial communication standards, this sensor provides reliable data for building management systems, energy efficiency optimization, and regulatory compliance.
Key Technical Specifications
- CO₂ Measurement Range: 400–5000 ppm
- Temperature Range: -10°C to 50°C
- Humidity Range: 0–99.9% RH
- Sensor Technology: Swiss-made Sensirion NDIR
- Accuracy: CO₂ ±15%, Temp ±0.5°C, RH ±5%
- Display: High-resolution LED
- Reporting Interval: 1 min to 24 hrs
- Power Supply: USB-C rechargeable lithium battery (2600mAh)
- Dimensions: 77 x 77 x 28 mm
- Weight: 221 g
- Ingress Protection: IP20
Wireless Connectivity & Integration
- LoRaWAN® Protocol: Class A
- Frequency Bands: EU868, US915, AU915, KR920, AS923
- Integration: Fully compatible with the SenseCore Control Suite for centralized monitoring and alerting
- Additional Features: Built-in buzzer for over-limit alerts, real-time visualization on mobile devices
Installation & Applications
- Offices & Conference Rooms: Maintain optimal CO₂ levels for occupant comfort
- Schools & Educational Facilities: Support healthy learning environments
- Healthcare Settings: Ensure proper indoor air quality for patient safety
- Commercial Buildings: Optimize ventilation and comply with air quality regulations
Its compact, wireless design allows both retrofits and new deployments with minimal disruption.
