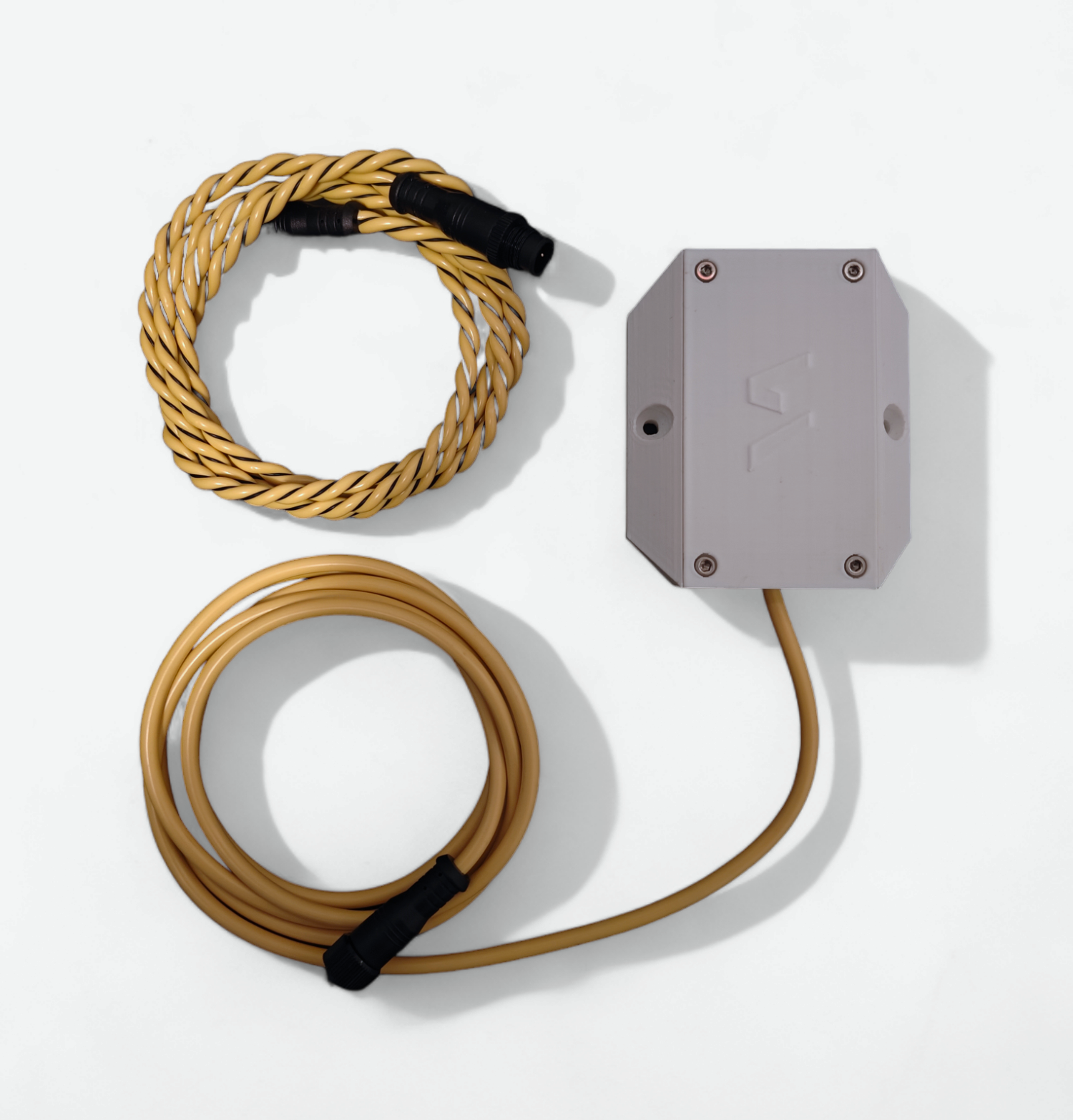

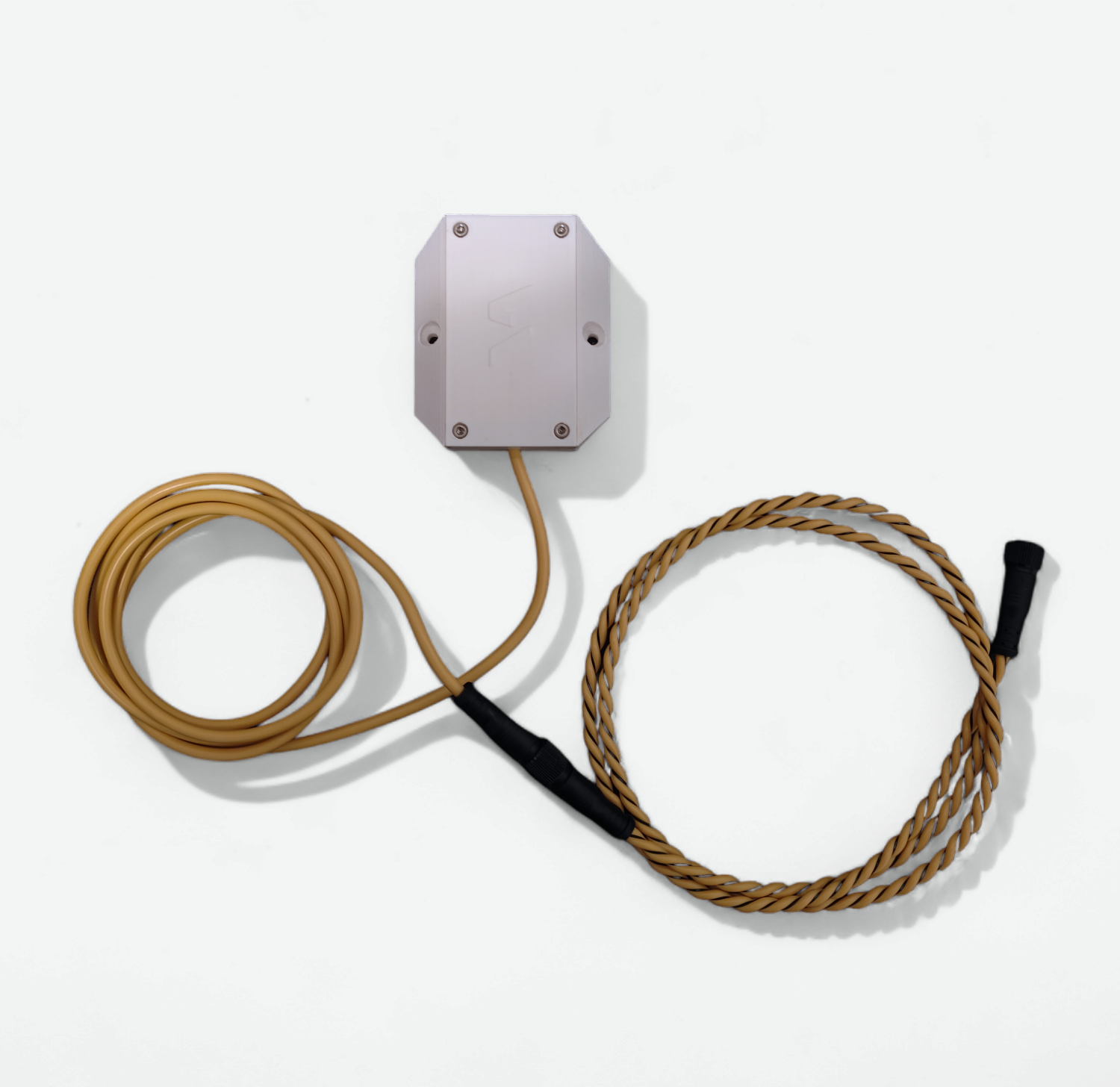

SenseCore Aquillo Rope Leak Sensor
The SenseCore Aquillo Rope Leak Sensor is a LoRaWAN non-position rope-type water leak controller. Lay the water leak cable on the ground to detect water leakage. The highly sensitive cable triggers a water leak alert via the LoRaWAN network.
The Aquillo sends periodic data every 2 hours, reports each leak event, counts leak occurrences, and calculates leak durations. It supports BLE configuration, OTA updates, and multiple uplink methods. Powered by 2 AAA batteries.
Features
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Water leak detection
- Support for Bluetooth v5.1 and LoRaWAN remote configuration
- Support for wireless OTA firmware updates
- Periodic uplink
- Downlink to change configuration
- 2 changeable AAA batteries
Specifications
Common DC Characteristics:
- Supply Voltage: Built-in battery, 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 MHz
- Max +22 dBm constant RF output
- RX sensitivity: down to -139 dBm
- Excellent blocking immunity
Battery:
- Li/SOCI2 unchargeable battery
- Capacity: 8500mAh
- Self-discharge: <1% / Year @ 25°C
- Max continuous current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
Applications
- Smart Buildings & Home Automation
- Smart Cities
- Smart Factory
