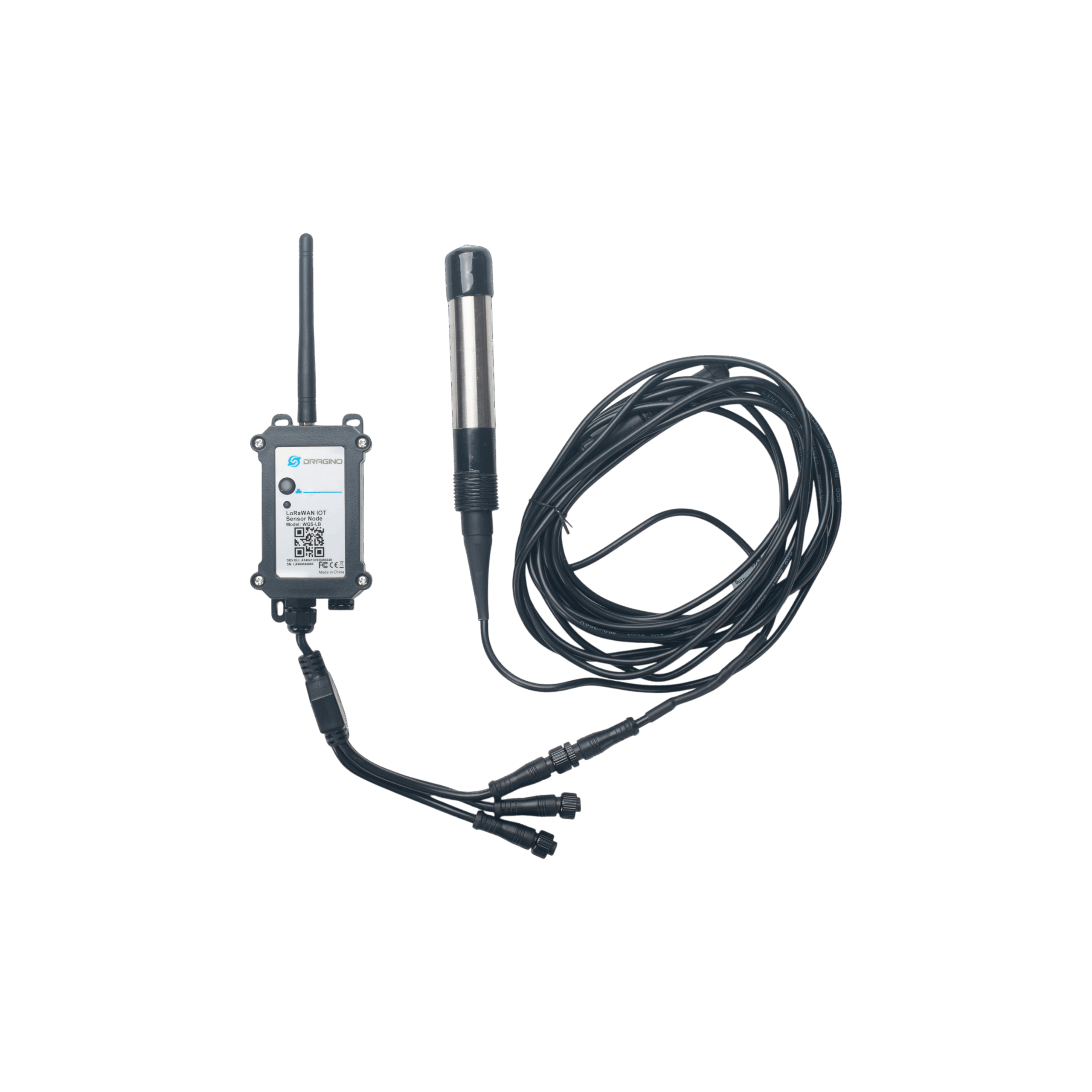

WQS-LB – LoRaWAN Water Quality Sensor

The WQS-LB — LoRaWAN Water Quality Sensor, powered by Dragino and integrated by SenseCore, offers continuous, remote water quality monitoring. Supporting up to three RS485-connected probes, it measures key parameters like pH, electrical conductivity (EC), dissolved oxygen (DO), ORP, and turbidity. With LoRaWAN connectivity, it transmits real-time data to the cloud, enabling remote monitoring via the SenseCore Control Suite for informed decision-making and efficient water management.

Built for long-term deployment, the WQS-LB features ultra-low power technology with battery or solar-powered options, ensuring years of reliable service. Its rugged, IP68-rated probes are designed for harsh, remote environments, and it supports over-the-air firmware updates and Bluetooth configuration. This sensor is a scalable, cost-effective solution for industrial, environmental, and municipal water quality monitoring.

LoRaWAN Water Quality Sensor

Powered by Dragino | Integrated by SenseCore

Advanced Water Quality Monitoring

The WQS-LB is a top-tier LoRaWAN water quality sensor. It’s designed for long-term, remote monitoring in various applications. From drinking water systems to industrial processes and wastewater treatment, this sensor provides precise data. Dragino manufactures it, and SenseCore integrates it for seamless operation.

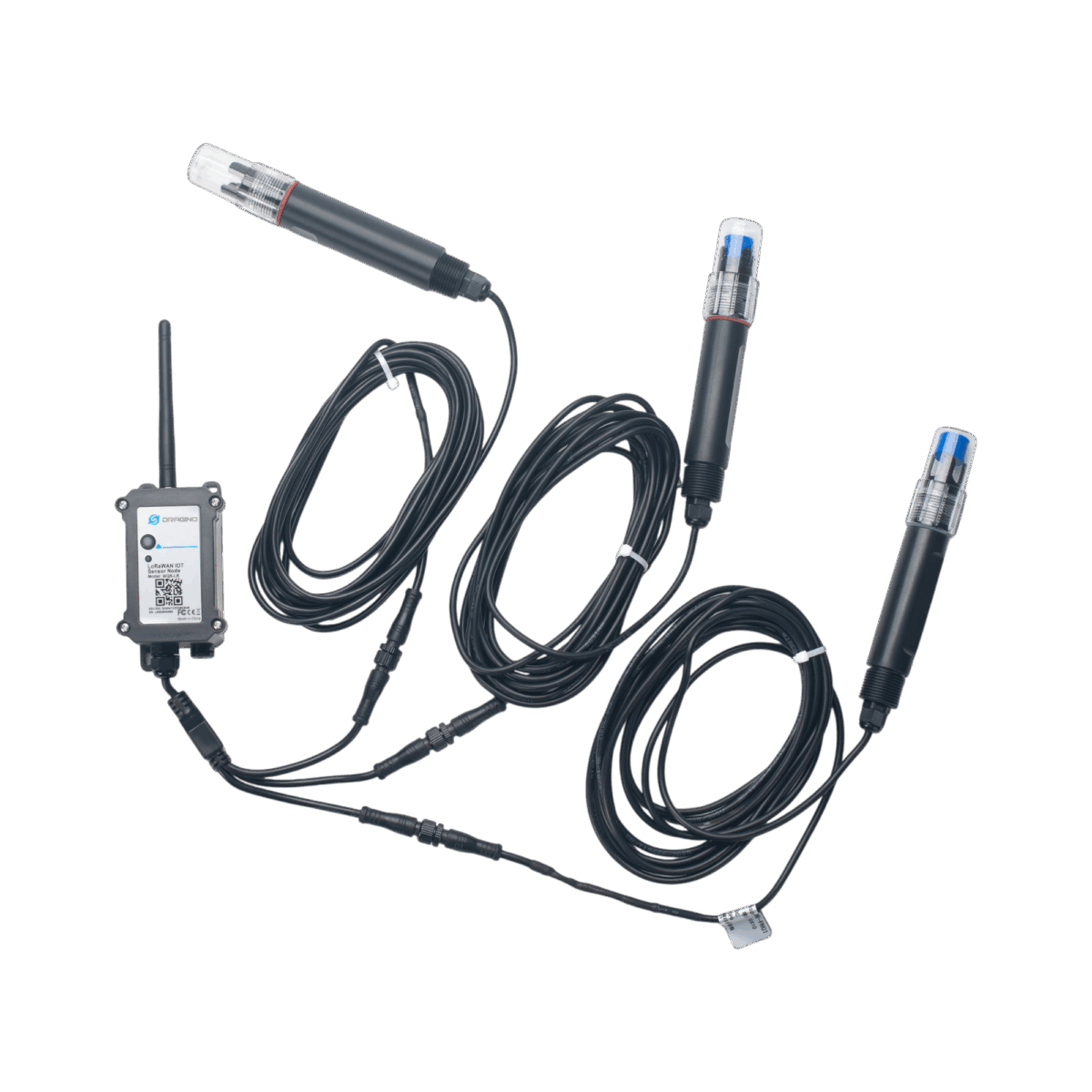

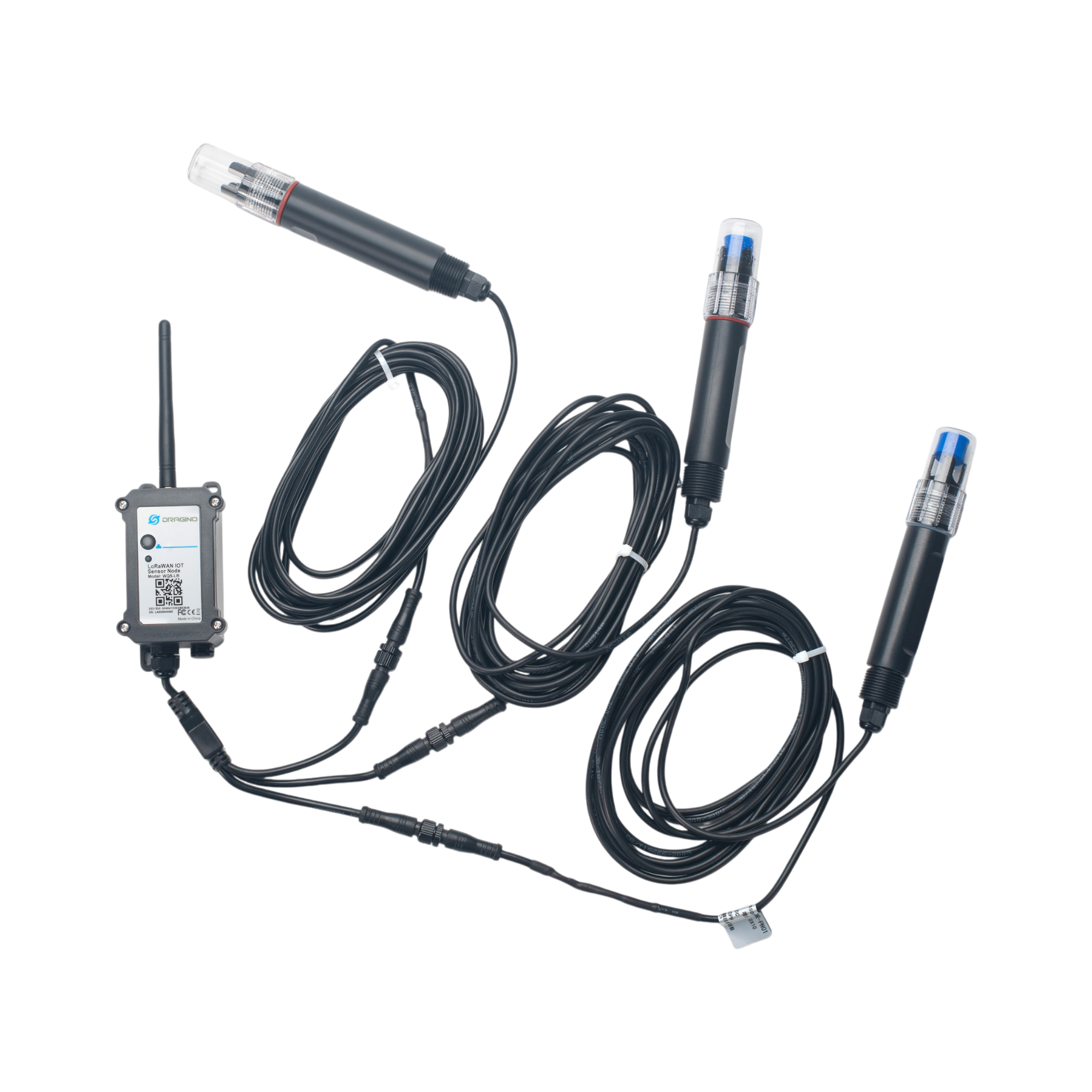

This sensor supports 1 to 3 modular RS485 probes (sold separately). You can monitor pH, EC, ORP, DO, TDS, and Turbidity — all critical water quality parameters.

Flexible Sensor Support

The WQS-LB connects to multiple Dragino probes:

  • pH (DR-PH01): Measures 0–14.00 pH, with ±0.15 accuracy.

  • Electrical Conductivity (DR-ECK1.0 / DR-ECK10.0): Measures up to 20,000 μS/cm.

  • Dissolved Oxygen (DR-DO1): Measures 0–20.00 mg/L, with ±3% accuracy.

  • Oxidation-Reduction Potential (DR-ORP1): Measures -1999 to +1999 mV.

  • Turbidity (DR-TS1): Measures 0.1–1000 NTU, with 0.1 NTU resolution.

These sensors are IP68-rated and built to withstand 0.6MPa pressure. They also feature auto temperature compensation for reliable performance in challenging environments.

LoRaWAN Connectivity + OTA Updates

The WQS-LB uses LoRaWAN to transmit data to any LoRaWAN-compatible network. The sensor integrates directly with the SenseCore platform for real-time monitoring. You can receive alerts and view metrics on our dashboard. The WQS-LB also supports Bluetooth configuration and OTA firmware updates, making it easy to maintain.

Long-Lasting Power Options

The WQS-LB offers two power options: 8500mAh Li-SOCI2 battery or solar + Li-ion battery. Both provide extended battery life, making it ideal for long-term deployments. The sensor is designed for years of maintenance-free operation.

Full Integration with SenseCore

The WQS-LB integrates with the SenseCore Control Suite. This integration gives you complete visibility and control over your water quality metrics. You can manage assets, set alerts, and track trends from one centralized platform.

Weight 1 kg
Dimensions 10.5 × 11 × 11 cm
